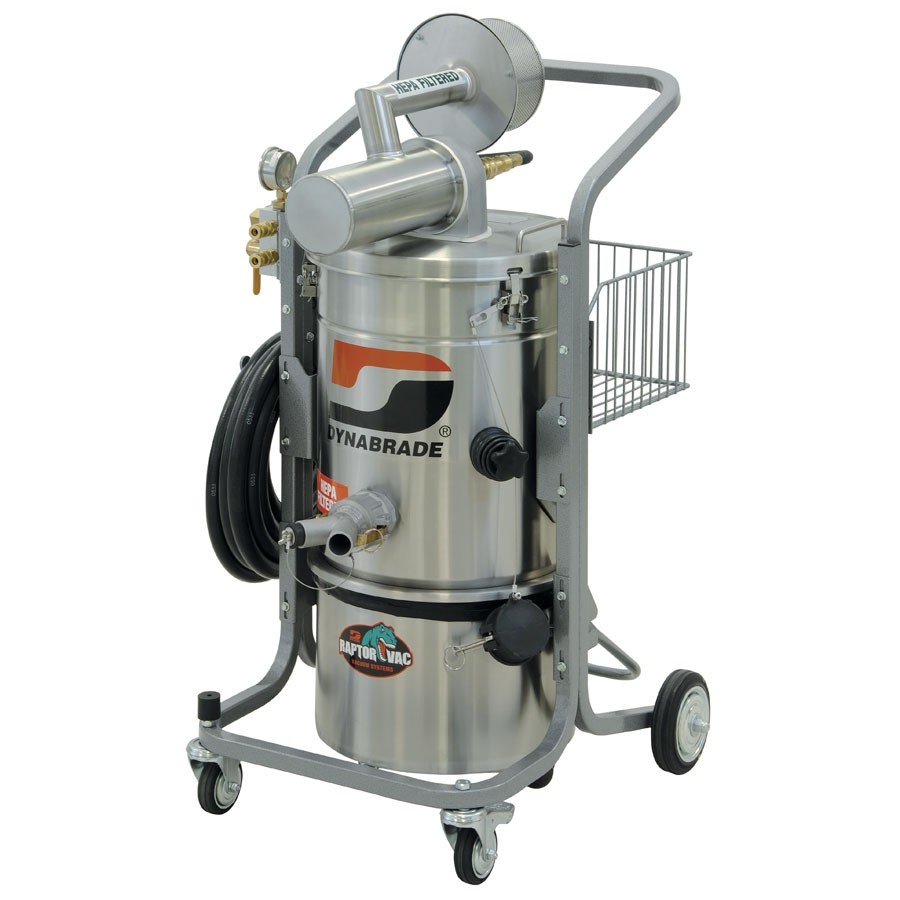

Dynabrade 61466 Raptor Vac Air Powered Portable Vacuum System

£5,881.34 +VAT

Dynabrade 61466 Raptor Vac Air Powered Portable Vacuum System

Description

  • Electric Portable Vacuum For use on metallic surfaces such as aluminium, magnesium, titanium, commercial alloys. Collects a maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 microns. The filter is located downstream of the motor. Manual Filter Shaker (MFS) system.
  • Top-quality stainless steel body and 6.25 gallon (24 litres) recovery tank. Maximum 5 pounds (2.27 kg) of metal dust recovery. Easy one-click detaching and connecting of the recovery tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with an easy-glide cart and tool basket. Guaranteed for the safe recovery of combustible/conductive dust. Includes 96608 Conductive Cleaning Kit. Connect two tools simultaneously.
    Designed For Use In:

  • Class I, Division I, Groups A, B, C, D T6
  • Class II, Division I, Groups E, F and G
  • Hazardous Locations as defined in the National Electric Code (NFPA 70)
  • European Certifications: ATEX, Third Party Certified, CE EX II 2 GD c IIC T6 (85° C)
  • Air Inlet Pressure PSIG (Bar): 90 (6.2)
  • Air Flow CFM: 110
  • Vacuum for use in:

  • Group A: atmospheres, containing acetylene
  • Group B: atmospheres, containing flammable gas, flammable liquid-produced vapour, or combustible liquid-produced vapour mixed with air
  • Group C: atmospheres containing flammable gas, flammable liquid-produced vapour, or combustible liquid-produced vapour mixed with air
  • Group D: atmospheres, containing flammable gas, flammable liquid-produced vapour, or combustible liquid-produced vapour mixed with air that may burn or explode
  • Group E: atmospheres, containing potentially combustible dust, including aluminium, magnesium, and their commercial alloys
  • Group F: atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust
  • Group G: atmospheres, containing wood and plastic dusts
  • Additional Information

    Vacuum Type: Dry

    Configuration: Pneumatic

    Capacity: 24 Litres

    EU Vacuum Certification: ATEX Cat. 2 for Zones 1 & 21

    Atmosphere(s): Combustible Dusts, Metal Alloys

    Item Weight (kgs): 34.02

    Video of the Dynabrade 61466 Raptor Vac Air Powered Portable Vacuum System
