Description

CP3450 angle Grinders Series have grinding wheel capacities from 4′ (100 mm) to 5′ (125 mm) with a powerful motor 1.1 hp (810 W) and a free speed up to 12,000 rpm. Its low-profile angle head design is perfect for surface preparation in any type of space. A constant lubrication bevel gear design ensures high durability. The CP3450 angle grinder Series offers 5 models with 3-wheel capacities and 3 spindle thread size choices (M14, 3/8-24′ and 5/8-11′). The CP3450-12CR4 with rotative throttle is not for CE/NA Market.
Country of origin is TW. Customs tariff is 84671110
Technical Specifications
Imperial
Metric
Speed
Free Speed
12000 rpm
Air consumption at free speed
18 l/s
Design & Functions
Autobalancer
No
Guard max rotation
0 °
Guard positions
1
Main Material type
Aluminium, Composite over-sleeve
Output Spindle Thread
M14x2
Rotative guard type
Screws
Spindle lock
No
Starting system
Safety lever
Swiveling guard
No
Wheel/Disc diameter (in)
5
Wheel/Disc diameter (mm)
125
Noise & vibrations
Sound Power
106 dB(A)
Sound Pressure
95 dB(A)
Uncertainty vibration-K
2.9 m/s²
Vibration
8.1 m/s²
Air information
Air consumption at load
17 l/s
Air inlet thread size (in)
3/8
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
13 mm
Power
Max power
810 W
Size & Weight
Length (L)
231 mm
Weight
1.7 kg
CP3450-12AA5
6151604040

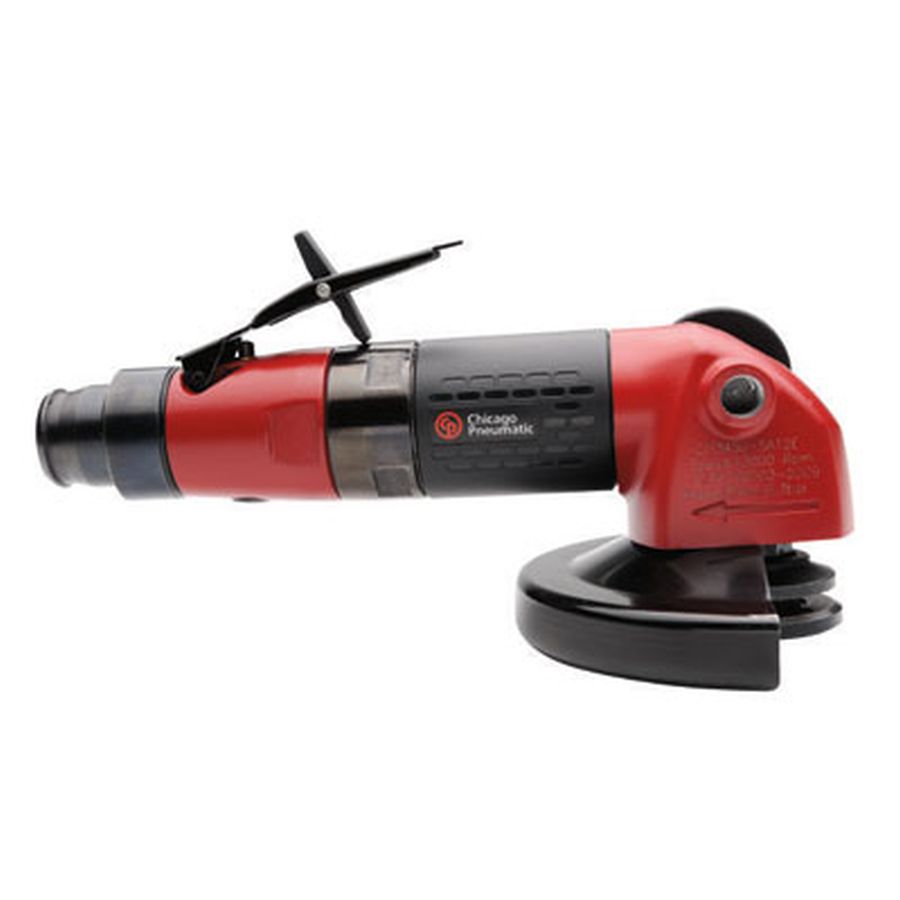

5″(125 Mm) pneumatic angle grinder
dimention
Package Dimensions
25.5 x 15.5 x 11 cm
weight
Package Weight
2.11 kg

Related Documents
Safety Information, Manuals, Technical Drawings, etc.
Benefits
Industrial grade durability up to 1,000 hours between maintenance intervals
Streamlined orientable safety lever for operator comfort
Steel housing with an insulating composite over-housing for optimal handling
Low profile angle head for better ergonomics
Constant lubrication bevel gear design
