Description

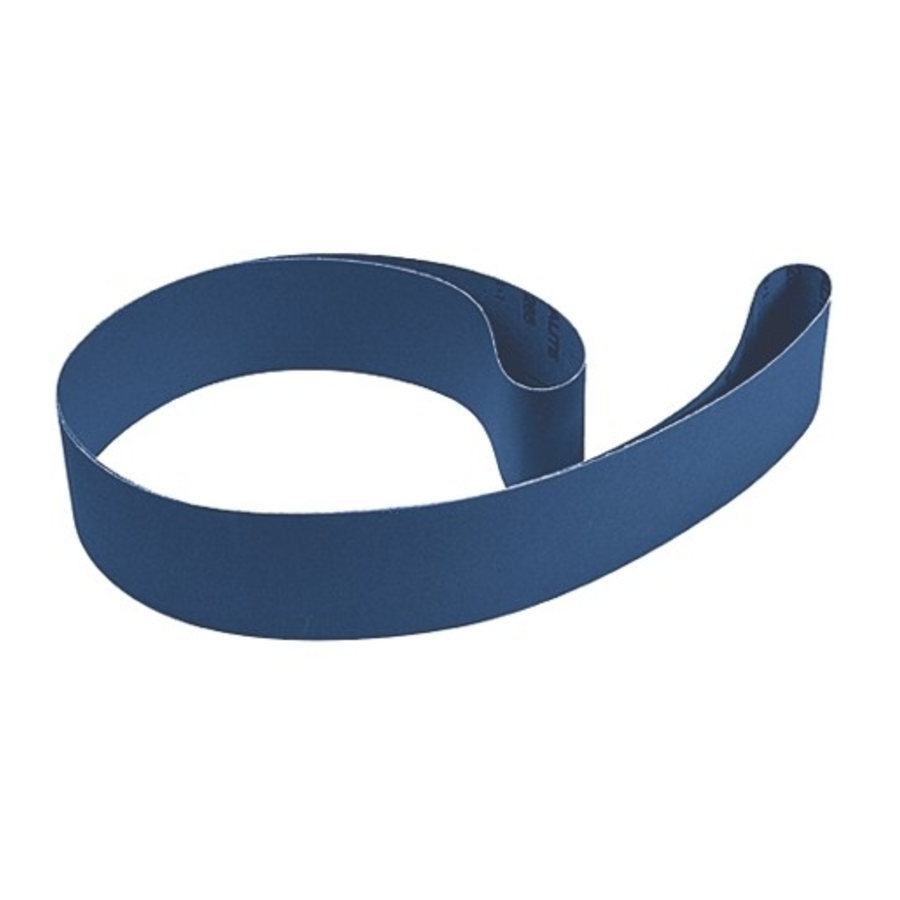

Product Description of the Sia 2820 Zirconia Abrasive Belts

• Recommended for stainless steel, carbon/mild steel, alloyed steel, aluminium and aluminium alloys
• Active additives reduce heat generation and guarantee cooler grinding, with virtually no discolouration of the workpiece
• Closed coat and heavy X-weight cloth backing - aggressive cut, particularly in coarser grits
• Reliable and versatile general-purpose material

Properties
• Grit Type: Zirconia Alumina
• Backing: y-wt cloth
• Coating: Closed
• bonding: Resin over resin
• Special coating: Cooling additive
• Equipment:
• Properties Technology

• Cut: 7 - high
• Lifetime: 7 - long
• Finishing: 8 - good
• Flexibility: 3 - rigid
• Contact pressure: 7 - strong

Advantages
• High edge stability, high tear resistance
• Suitable for general use in dry and wet sanding applications
• Aggressive cut
• High performance for all metals

Applications
• Removing rust
• Weld preparation
• Removing discolouration
• Deburring
• Structuring and final sanding

• Removing paint
• Sanding down
• Surface treatment
• Blending

Surfaces
• Non-alloy / low-alloy steels
• Non-ferrous metals

Data Sheet for the Belt Calculator - Sia 2820 Zirconia Abrasive Belts

[google-drive-embed url="https://drive.google.com/file/d/0B2speLrchvjXVW9JSklZTzZSRm8/preview?usp=drivesdk" title="Datasheet-2820_siamet_en_Headquarter_lowRes.pdf" icon="https://drive-thirdparty.googleusercontent.com/16/type/application/pdf" width="100%" height="1200" style="embed"]

Why Use Zirconia?

Sia 2820 Zirconia Abrasive Belts have a zirconia grain, which lasts considerably longer and cuts more quickly than aluminium oxide. This is due to its self-sharpening grain which does not dull as quickly, however in order for this to be effective it does need to be used at higher pressures to break the grit down or it will just "glaze" over the workpiece and not actually cut. As such Sia 2820 Zirconia Abrasive Belts are best used on high pressure grinding/machining applications.

Due to the very aggressive and fast-cutting nature of the grain, zirconia is generally only available in the coarse to medium grit range (often no finer than P120.) For finer finishing stock removal is not the priority so less pressure is likely to be applied and zirconia would not therefore be suitable.

Zirconia is in some cases supplied with a "topsize" (also known as "top coat", or "supersize layer".) This is a coating which is sprayed on to the grit to act as a coolant when working on heat-sensitive metals such as stainless steel and exotic alloys, and therefore reduce discoloration or burning. It can however also act as a lubricant to help reduce loading (where stock removed from the workpiece builds up on the abrasive and makes it less effective) on softer metals such as aluminium. The presence of a topsize does reduce the aggressiveness of the grain however, and so it is best not to have one if discoloration will not be an issue, for example when working on mild/carbon or structural steel.

With zirconia flap discs in particular, the power of the operator's angle grinder is an important factor - the higher the content of zirconia and the tougher the backing the more powerful it needs to be in order to break down the grain and perform more effectively. Conversely a lower grade flap disc will wear much more quickly if used on a high powered grinder. As a general rule air powered grinders are usually quite powerful and will therefore often be best served with a tough poly-cotton backing & high grade zirconia, the same for electric tools with power ratings of 1000 watt and above while lower grade discs with less durable backings would be more suitable for lower powered units.

Available in various other forms including abrasive belts, velcro-backed discs and fibre discs. Roloc discs, also known as speedlok, siafix, quick-release, and quick-change discs, are also very popular and often used for blending/removing welds and spot repair. Our Blue Turbo Zirconia Rolocs in particular are very aggressive and available as coarse as P24, therefore being useful for fast stock removal, while the Green Nitro Zirconia Rolocs have a topsize and are ideal for reducing heat generation.
